Feature
Machine Technical Specifications
-
Standard Spindle Speeds
8,000 rpm
-
Optional Spindle Speeds
12,000 rpm -
Rigid Tapping
3,000 rpm
-
Spindle Nose Taper
BBT40
-
3 Axes Rapid Traverse X, Y, Z 36 / 36 / 36 m/min
-
High Speed Arm-Type ATC time T-T
M 2.2 sec / F 3.2 sec Fully Enclosed Heat Isolated Electric Cabinet
Introduction
Naked Machine
Tool Magazine
Belt Spindle BBT40
Servo ATC ( OP )
The 4th Axis ( OP )
Oil Cooler ( OP )
Oil Mist Collector ( OP )
Specifications

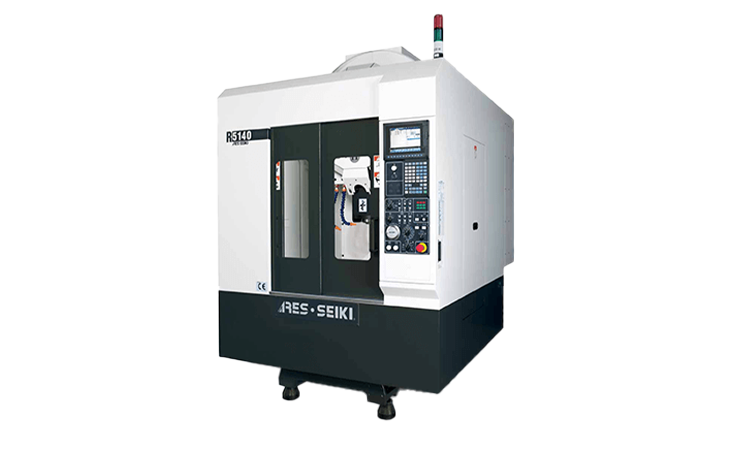

| Unit | R-5140 |
|
| Table Size |
mm | 600 x 410 |
| Max. Table Load |
kg | 250 |
| Longitudinal Table Travel (X) |
mm | 510 |
| Cross Table Travel (Y) |
mm |
400 |
| Vertical Head Travel (Z) |
mm |
460 |
| Table to Spindle Nose | mm | 140 ~ 600 |
| Spindle Taper | BT40 | |
| Pull Stud | MAS403 P40T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 7.5 / 5.5 |
| Fanuc |
kw | 7.5 / 5.5 |
| X Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Y Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Z Drive Motor | ||
| Mitsubishi | kw | 3.0 |
| FANUC | kw | 3.0 |
| Spindle Speeds | rpm | 8,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 36 / 36 / 36 |
| Magazine Capacity | no. | 12 |
| Max. Tool Weight | kg | 3 |
| Max. Tool Length | mm | 250 |
| ATC Time | sec | M2.2 / F3.2 ( T-T ) |
| Net Weight | kg | 3500 |
| Floor Space | mm | 1560 x 2670 x 2825 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
