Feature
Machine Technical Specifications
-
Standard Spindle Speeds
10,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 / 20,000 / 24,000 / 30,000 rpm
( Built in Spindle ) -
Rigid Tapping
4,000 rpm
-
Spindle Nose Taper
BBT30
-
3 Axes Rapid Traverse X, Y, Z 48 / 48 / 60 m/min
-
High Speed Arm-Type ATC time T-T
M 1.7 sec / F 2.6 sec -
Fully Enclosed Heat Isolated Electric Cabinet
-
Directly Coupled Spindle Drive System
Introduction
Naked Machine
Tool Magazine
Direct Drive Spindle BBT30
Servo ATC ( OP )
The 4th Axis ( OP )
CTS Spindle Motor ( OP )
CTS Filtration with Water Tank
( OP )
Oil Mist Collector ( OP )
Specifications

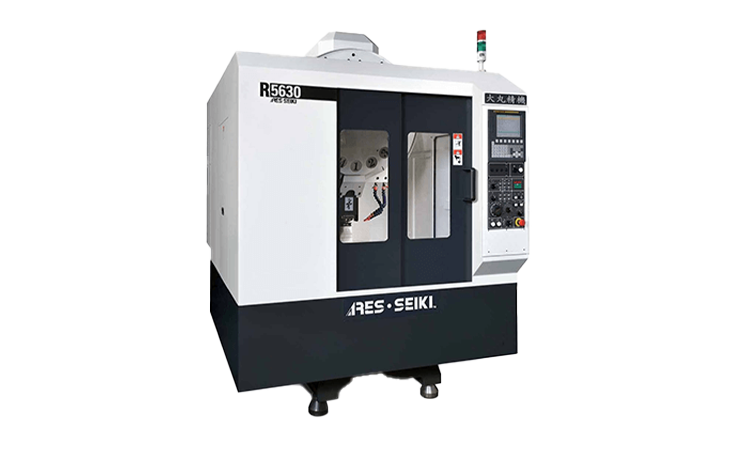

| Unit | R-5630 |
|
| Table Size |
mm | 650 x 410 |
| Max. Table Load |
kgf | 200 |
| X, Y, Z Axis Travel |
mm | 560 x 400 x 300 |
| Table to Spindle Nose | mm | 180 ~ 480 |
| Spindle Taper | BT30 | |
| Pull Stud | MAS403 P30T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 5.5 / 3.7 |
| Fanuc |
kw | 3.7 / 2.2 |
| Siemens | 4.8 | |
| X Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Siemens | 2.3 | |
| Y Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Siemens | 2.3 | |
| Z Drive Motor | ||
| Mitsubishi | kw | 3 |
| FANUC | kw | 3 |
| Siemens | 3.3 | |
| Spindle Speeds | rpm | 10,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 48 / 48 / 60 |
| Tools Capacity | tools | 14 / 20 ( OP ) |
| Max. Tool Weight | kg | 3 |
| Max. Tool Length | mm | 200 |
| ATC Time | sec | M 1.7 / F 2.6 ( T-T ) |
| Net Weight | kg | 2600 |
| Floor Space | mm | 1590 x 2640 x 2500 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact us one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
