Feature
Machine Technical Specifications
-
Spindle taper BBT40
-
Vertical & horizontal dual-purpose spindle
-
Built-in spindle speed 8000rpm
-
Built-in spindle power 29.3kW
-
Built-in spindle torque 107.6Nm.
-
C-axis 90∘indexing division rotary table
-
Tool magazine capacity 24+1 pcs
-
X/Y/Z-axis uses 45mm width roller type linear
Introduction

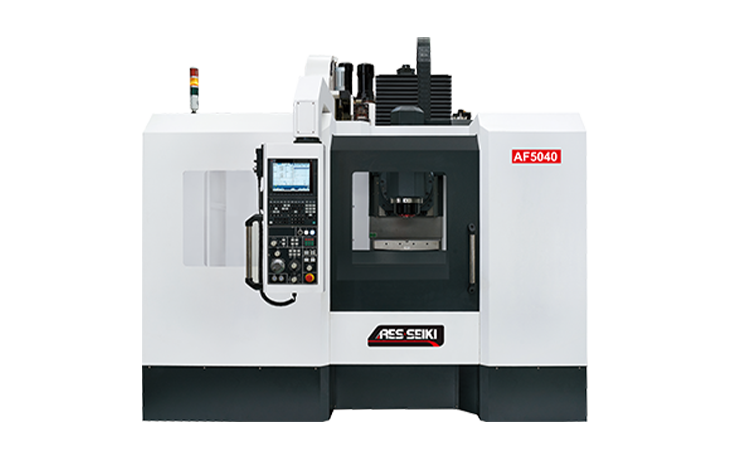

Frame Machine ( Vertical Spindle )
Axial Diagram
Frame Machine
( Horizontal Spindle )
Built-in Spindle
C-Axis 90° Indexing Table
Specifications
| Unit | AF5040 |
|
| Head Max. Speed | 2.7s ( rotation time ) | |
| Table Size |
mm | 500 x 500 |
| C-Axis Table Indexing Angle |
deg. |
90° / 0.001° ( OP ) |
| Table Load |
kg |
600 |
| X-Axis Travel |
mm |
1150 |
| Y-Axis Travel |
mm |
600 |
| Z-Axis Travel | mm | Vertical Spindle 650 / Horizontal Spindle 910 |
| Vertical Spindle Nose to Table Surface | mm | 85~735 / 40~690 ( 0.001° C-Axis Table ) |
| Horizontal Spindle Nose to Table Edge | mm | 30～300 / 70 ~ 340 ( Swing head ) |
| Horizontal Spindle Center to Table Surface | mm | 80~535 / 40~490 ( 0.001° C-Axis Table + left tool magazine ) |
| Spindle Type | Built-in Spindle | |
| Spindle Speeds | rpm | 8000 / 10000 / 15000 (OP) |
| Mitsubishi | Kw | 24.5 (continuous) / 29.3 (30 minutes quota) |
| Siemens | Kw | 11 (continuous) / 15 (15 minutes quota) |
| 1/4 H / Cont. | ||
| Fanuc | Kw | 15 / 11 ( Low-Speed Winding ) |
| Spindle Torque | ||
| 1/2 H / Cont. | ||
| Mitsubishi | Nm | 90.2 (continuous) / 107.6 (30 minutes quota) |
| Siemens | Nm | 90.2 (continuous) / 107.6 (30 minutes quota) |
| 1/4 H / Cont. | ||
| Fanuc | Nm | 45.7 (continuous) / 59.7 (15 minutes quota) |
| Spindle Taper | BBT40 | |
| X / Y / Z - Axis Servo Motor | ||
| Mitsubishi | Kw | 3.5 / 3.5 / 7.0 |
| Siemens | Kw | 3.55 / 3.55 / 7.1 |
| Fanuc | Kw | 4.0 / 4.0 / 7.0 |
| C-Axis Servo Motor 0.001° Indexing | ||
| Mitsubishi | Kw | 4.5 |
| Siemens | Kw | 4.3 |
| Fanuc | Kw | 4.0 |
| X / Y / Z-Axis Rapid Traverse | m/min | 36 / 36 / 30 |
| Max. Cutting Feedrate | m/min | 10 |
| Tool Magazine Capacity | pcs | 24T / 30T |
| Max. Tool Weight | kg | 7 |
| Max. Tool Length | mm | 300 |
| Max. Tool Dia. ( W / Adjacent Tool ) | mm | Ø80 |
| Max. Tool Dia. ( W / O Adjacent Tool ) | mm | Ø150 |
| LED Work Light | pcs | 2 |
| Spindle Oil Cooler | set | 1 |
| Screw Type Chip Conveyor | set | 2 |
| Tank Volume | L | 270 |
| Power Consumption | KVA | 45 |
- For any requirements other than the standard specifications, please contact our salesmen.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
