Feature
Machine Technical Specifications
-
Standard Spindle Speeds
10,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 / 20,000 / 24,000 rpm -
Rigid Tapping
4,000 rpm
-
Spindle Nose Taper
BBT30
-
3 Axes Rapid Traverse X, Y, Z 48 / 48 / 48 m/min
-
High Speed Arm-Type ATC time T-T
2.2 sec Fully Enclosed Heat Isolated Electric Cabinet
Directly Coupled Spindle Drive System
Introduction
Naked Machine
Table
Tool Magazine
Direct Drive Spindle BBT30
Auto. Roof Flush Chip Purging System
The 4th Axis ( OP )
CTS Spindle Motor ( OP )
CTS Filtration with Water Tank
( OP )
Oil Cooler ( OP )
Oil Mist Collector ( OP )

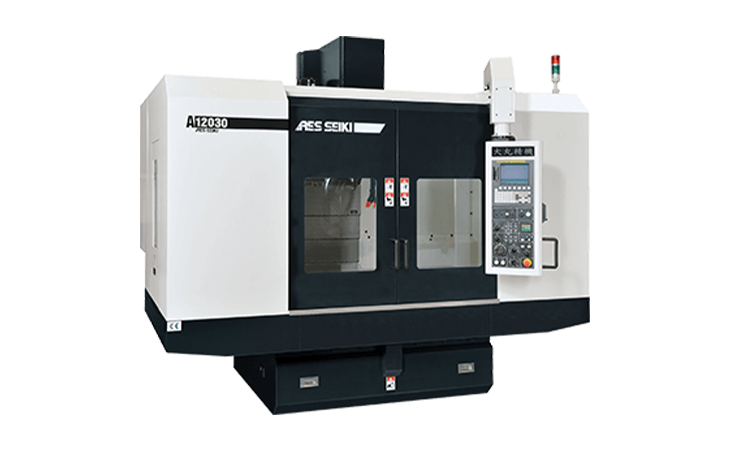

Specifications
| Unit | A-12030 |
|
| Table Size |
mm | 1300 x 530 |
| Max. Table Load |
kgf | 400 |
| X, Y, Z Axis Travel |
mm | 1200 x 500 x 350 |
| Table to Spindle Nose |
mm |
170 ~ 520 |
| Spindle Taper |
BT30 |
|
| Pull Stud | MAS403 P30T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 5.5 / 3.7 |
| Fanuc |
kw | 3.7 / 2.2 |
| Siemens |
kw | 4.8 |
| X Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3.0 |
| Siemens | kw | 3.3 |
| Y Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3.0 |
| Siemens | kw | 3.3 |
| Z Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 4.0 |
| Siemens | kw | 4.8 |
| Spindle Speeds | rpm | 10,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 48 / 48 / 48 |
| Tools Capacity | tools | 20+1 |
| Max. Tool Weight | kg | 4 |
| Max. Tool Length | mm | 200 |
| ATC Time | sec | 2.2 ( T-T ) |
| Net Weight | kg | 4570 |
| Floor Space | mm | 2900 x 3270 x 2625 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
