Feature
Machine Technical Specifications
-
Standard Spindle Speeds
10,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 / 20,000 / 24,000 rpm
-
Rigid Tapping
4,000 rpm -
Spindle Nose Taper
BBT30
-
3 Axes Rapid Traverse X, Y, Z 48 / 48 / 60 m/min
-
High Speed Arm-Type ATC Time T-T
2.2 sec -
Fully Enclosed Heat Isolated Electric Cabinet
-
Directly Coupled Spindle Drive System
Introduction
Naked Machine
Tool Magazine
Direct Drive Spindle BBT30
Built-in Spindle BBT30
30,000rpm ( OP )
The 4th Axis ( OP )
CTS Spindle Motor ( OP )
CTS Filtration with Water Tank
( OP )
Oil Cooler ( OP )
Oil mist collector ( OP )

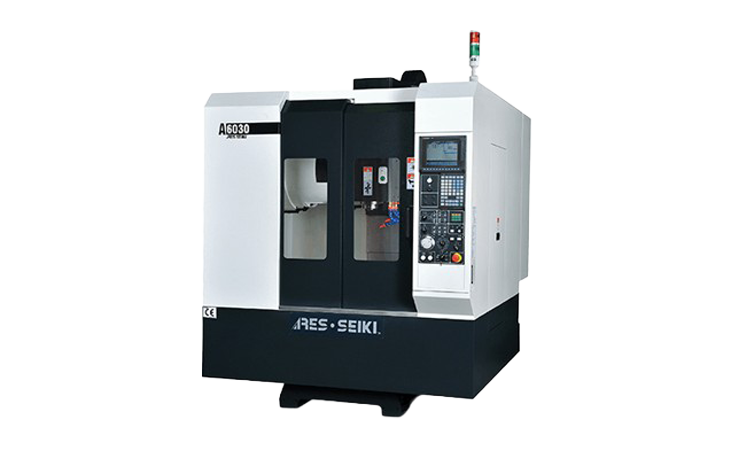

Specifications
| Unit | A-6030 |
|
| Table Size |
mm | 700 x 410 |
| Max. Table Load |
kg | 200 |
| X, Y, Z Axis Travel |
mm | 600 x 400 x 350 |
| Table to Spindle Nose |
mm |
155 ~ 505 |
| Spindle Taper |
BT30 |
|
| Pull Stud | MAS403 P30T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 5.5 / 3.7 |
| Fanuc |
kw | 3.7 / 2.2 |
|
Siemens |
kw | 4.8 |
| X Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Siemens | kw | 2.3 |
| Y Drive Motor | ||
| Mitsubishi | kw | 1.5 |
| FANUC | kw | 1.6 |
| Siemens | kw | 2.3 |
| Z Drive Motor | ||
| Mitsubishi | kw | 3 |
| FANUC | kw | 3 |
| Siemens | kw | 3.3 |
| Spindle Speeds | rpm | 10,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 48 / 48 / 60 |
| Tools Capacity | tools | 20+1 |
| Max. Tool Weight | kg | 4 |
| Max. Tool Length | mm | 200 |
| ATC Time | sec | 2.2 ( T-T ) |
| Net Weight | kg | 3200 |
| Floor Space | mm | 1700 x 2750 x 2360 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
