Feature
Machine Technical Specifications
-
Standard Spindle Speeds
8,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 rpm
-
Rigid Tapping
3,000 rpm
-
Spindle Nose Taper
BBT40
-
3 Axes Rapid Traverse X, Y, Z 36 / 36 / 48 m/min
-
High Speed Arm-Type ATC Time T-T
3.1sec -
APC Time
5 sec -
Directly Coupled Spindle Drive System
Introduction

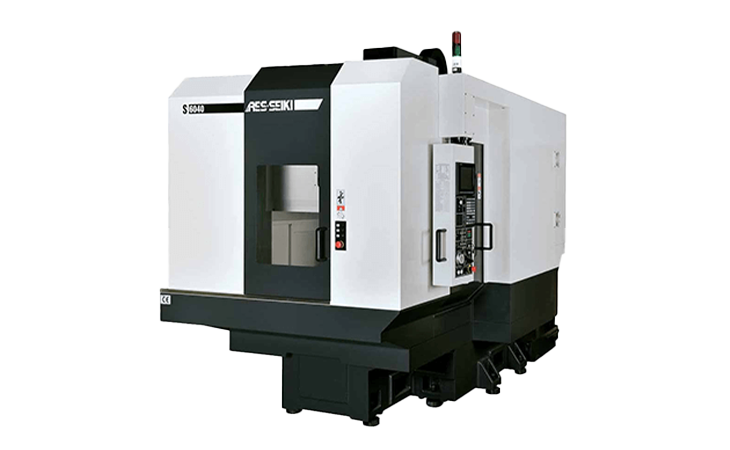

Dual work stations, rotary worktables, and moving column structure allows operator to effectively reduce idle time needed to change workpieces during machining. Well suited for mass production.
Naked Machine
Rotary Tables ( T-Slot )
Tool Magazine
Direct Drive Spindle BBT40
Chip Conveyor with Cart ( OP )
CTS Spindle Motor ( OP )
CTS Filtration with Water Tank
( OP )
Oil Mist Collector ( OP )
Oil Cooler ( OP )
Specifications
| Unit | S-6040 |
|
| Table Size |
mm | 700 x 400 x 2 pcs |
| Max. Table Load |
kg | 250 |
| X, Y, Z Axis Travel |
mm | 600 x 400 x 500 |
| Table to Spindle Nose | mm | 180 ~ 680 |
| Spindle Taper | BT40 | |
| Pull Stud | MAS403 P40T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 7.5 / 5.5 |
| Fanuc |
kw | 7.5 / 5.5 |
| Siemens | kw | 7.0 |
| X Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3 |
| Siemens | kw | 3.3 |
| Y Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3 |
| Siemens | kw | 3.3 |
| Z Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 4 |
| Siemens | kw | 4.9 |
| Spindle Speeds | rpm | 8,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 36 / 36 / 48 |
| Tools Capacity | tools | 24+1 |
| Max. Tool Weight | kg | 5 |
| Max. Tool Length | mm | 250 |
| ATC Time ( T-T ) | sec | 3.1 |
| APC Time | sec | 5 |
| Net Weight | kg | 6,600 |
| Floor Space | mm | 3660 x 2582 x 2780 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
