Feature
Machine Technical Specifications
-
Standard Spindle Speeds
8,000 rpm
-
Optional Spindle Speeds
12,000 / 15,000 rpm
-
Rigid Tapping
3,000 rpm
-
Spindle Nose Taper
BBT40
-
3 Axes Rapid Traverse X, Y, Z 48 / 48 / 48 m/min
-
High Speed Arm-Type ATC time T-T
M 2.5 sec / F 3.5 sec -
Fully Enclosed Heat Isolated Electric Cabinet
-
Directly Coupled Spindle Drive System
Introduction
Table
Tool Magazine
Direct Drive Spindle BBT40
Auto. Roof Flush Chip Purging System
Servo ATC (OP)
The 4th Axis ( OP )
CTS Spindle Motor ( OP )
CTS Filtration with Water Tank
( OP )
Oil Mist Collector ( OP )
Specifications

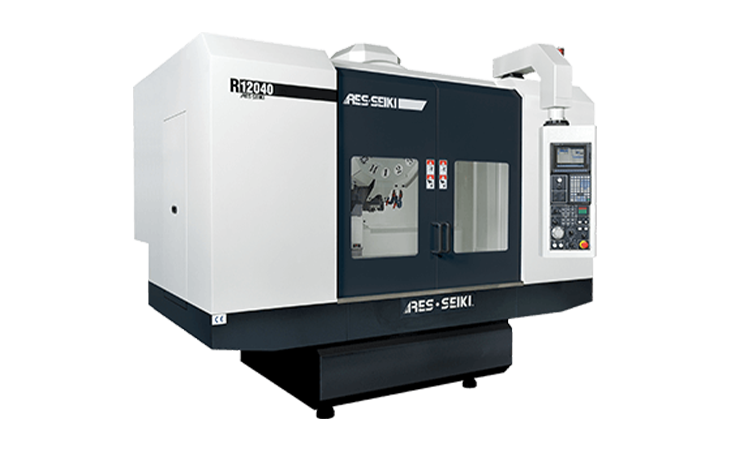

| Unit | R-12040 |
|
| Table Size |
mm | 1300 x 530 |
| Max. Table Load |
kg | 400 |
| X, Y, Z Axis Travel |
mm | 1200 x 500 x 400 |
| Table to Spindle Nose | mm | 140 ~ 540 |
| Spindle Taper | BT40 | |
| Pull Stud | MAS403 P40T-1 ( 45° ) | |
|
Spindle Motor |
|
|
| Mitsubishi |
kw | 7.5 / 5.5 |
| Fanuc |
kw | 7.5 / 5.5 |
| Siemens | kw | 7.0 |
| X Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3.0 |
| Siemens | kw | 3.3 |
| Y Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 3.0 |
| Siemens | kw | 3.3 |
| Z Drive Motor | ||
| Mitsubishi | kw | 3.5 |
| FANUC | kw | 4.0 |
| Siemens | kw | 4.8 |
| Spindle Speeds | rpm | 8,000 |
| X, Y, Z Axis Rapid Traverse | m/min | 48 / 48 / 48 |
| Magazine Capacity | no. | 14 |
| Max. Tool Weight | kg | 3 |
| Max. Tool Length | mm | 250 |
| ATC Time | sec | M2.5 / F3.5 ( T-T ) |
| Net Weight | kg | 4620 |
| Floor Space | mm | 2900 x 3270 x 3000 |
- Tool change time supplied with Mitsubishi controller and standard 60Hz power. For electrical requirements other than this standard, please contact one of our personnel.
- The company reserves the right to modify the specifications / design, subject to change without further notice.
- Actual specifications, based on order content.
